Beam Column of Hat Section

American Codes

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

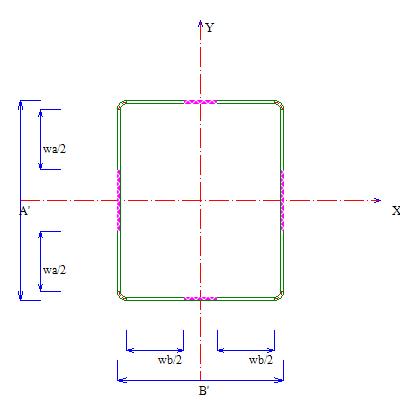

R = in. A' = in. t = in. B' = in. F_y = ksi C' = in. Section Information

ASD LRFD

Moment Profile C_b = 12.5 M_max / [2.5 M_max + 3 M_A + 4 M_B + 3 M_C ] M_max - absolute value of maximum moment M_A - absolute value of moment at quarter point M_B - absolute value of moment at centerline M_C - absolute value of moment at three-quarter point

End Moment Coefficient C_m: 1). C_m = 0.85, for compression members in frames subject to joint translation (sideway) 2). C_m = 0.6 - 0.4 (M₁ / M₂) , for restrained compression members in frames braced against joint translation, not subject to transverse loading. M₁ - the smaller moment, M₁ / M₂ is positive when the member is bent in reverse curvature 3). For compression members in frames braced against joint translation, and subject to transverse loading C_m = 0.85, for members whose ends are restrained C_m = 1.0, for members whose ends are un-restrained

Results k_x. L_x/ r_x = k_y. L_y/ r_y = P_u/(f_c.P_n)+C_mx. M_ux / (f_b . M_nx . a_x)+C_my. M_uy / (f_b . M_ny . a_y) P_u / (f_c . P_n0) + M_ux / (f_b . M_nx ) + M_uy / (f_b . M_ny) =

P_u = kips kips-ft M_uy = kips-ft Loading M_ux =

Member Information L_x = in. in. L_y = K_x = K_y = C_mx = C_my = C_b = L_t = in. Flange in Compression ( M_rx)

For continuous lateral and torsional bracing of compression flange, assume: L_t ≤ B' Beam Column of Hat SectionReview Report
